Key Takeaways
- A complete Ram or Dodge manual transmission rebuild costs between $1,200 and $2,800 in parts for DIY, versus $3,000 to $4,500 for professional service.
- The most commonly rebuilt Dodge and Ram manual transmissions are the New Venture Gear NV4500, New Venture Gear NV5600, and the Aisin G56.
- A typical DIY rebuild requires 12 to 18 hours of labor and specialized tools including a bearing press and snap ring pliers.
- Performance upgrades during a rebuild, such as heavy-duty synchros and upgraded input shafts, can increase torque capacity by 40 to 60 percent.
- Proper inspection of gear tooth contact patterns and bearing clearances between 0.003 and 0.005 inches determines whether a rebuild or full replacement is necessary.
This guide is written for DIY mechanics, truck enthusiasts, and independent shop owners who maintain Dodge and Ram trucks equipped with manual transmissions. If you are searching for a ram manual transmission rebuild or dodge manual transmission rebuild procedure, this step-by-step resource covers teardown, inspection, parts selection, reassembly, and performance upgrades for the most common Chrysler heavy-duty and light-duty manual gearboxes.
Rebuilding a Ram or Dodge manual transmission involves removing the unit, disassembling it completely, inspecting all gears and bearings against factory specifications, replacing worn synchronizers and seals, and reassembling with precise clearances. Most Dodge and Ram trucks from 1994 through 2025 use one of three manual transmissions: the New Venture Gear NV4500 (1994 to 2005), the New Venture Gear NV5600 (1999 to 2005), or the Aisin G56 (2005 to 2018). A professional rebuild typically costs between $3,000 and $4,500, while a competent DIY rebuild using a quality master rebuild kit runs between $1,200 and $2,800 depending on the transmission model and upgrade level selected. The entire process takes approximately 12 to 18 hours for a mechanic with intermediate to advanced experience.
Table of Contents
Common Dodge and Ram Manual Transmissions
Understanding which transmission is installed in your Dodge or Ram truck is the first step in any rebuild project. Chrysler has used several manual transmissions across its truck lineup, each with distinct architecture, parts availability, and rebuild complexity.
New Venture Gear NV4500

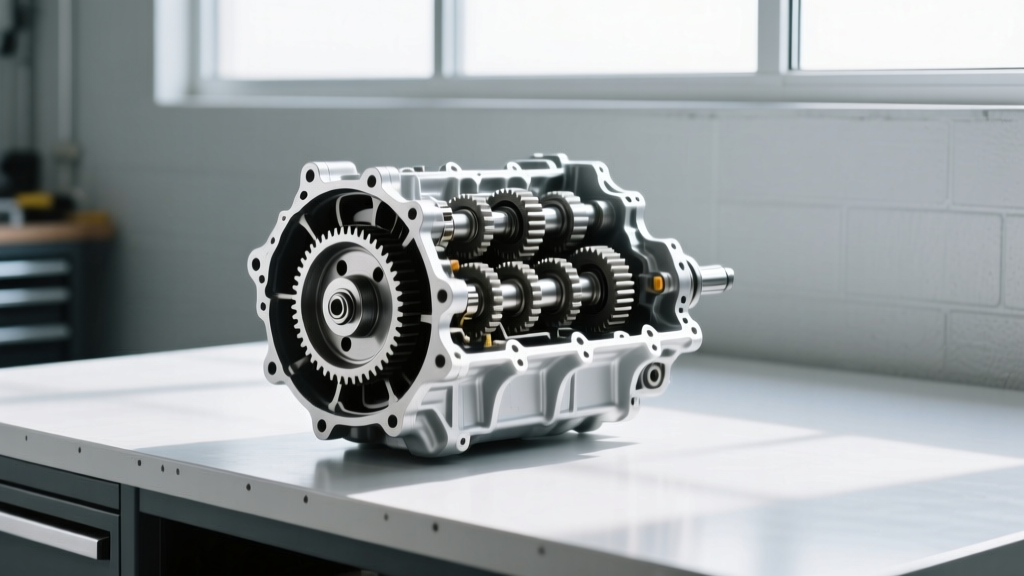

The New Venture Gear NV4500 is a five-speed manual transmission used in Dodge Ram 2500 and 3500 trucks from 1994 through 2005. It features a cast iron case, an aluminum top cover, and an overdrive fifth gear. The NV4500 has an input torque capacity of approximately 460 lb-ft from the factory. Fifth gear nut failure is a well-documented weakness that causes loss of overdrive; upgraded main shaft nuts with mechanical locking tabs are standard in most 2026-era rebuild kits. The NV4500 weighs approximately 178 pounds dry and requires 4.0 quarts of Castrol Syntorque 75W-85 or equivalent GL-4 lubricant.
New Venture Gear NV5600
The New Venture Gear NV5600 is a six-speed manual transmission introduced in 1999 for Dodge Ram trucks paired with the Cummins 5.9-liter and 6.7-liter diesel engines. It was produced through 2005. The NV5600 offers closer gear ratios than the NV4500, which improves drivability under heavy towing loads. The transmission weighs approximately 195 pounds and holds 4.0 quarts of lubricant. Input shaft bearing failure and synchro wear in third and fourth gears are the most common reasons owners pursue an NV5600 rebuild.
Aisin G56
The Aisin G56 is a six-speed manual transmission manufactured by Aisin Warner (a Toyota Group subsidiary) and used in Ram 2500 and 3500 trucks from 2005 through 2018. The G56 features an aluminum case and a torque capacity rated at approximately 600 lb-ft from the factory. It weighs approximately 175 pounds and uses Mopar ATF+4 automatic transmission fluid rather than gear oil. The G56 is generally considered more reliable than the NV4500 and NV5600, but synchro degradation under high-mileage or high-torque conditions still necessitates periodic rebuilds.
Signs Your Manual Transmission Needs a Rebuild
Identifying transmission problems early prevents catastrophic failure and reduces rebuild costs. The following symptoms indicate that your Dodge or Ram manual transmission requires internal service.
- Grinding during gear engagement: Worn synchronizer rings fail to match gear speed to shaft speed, producing a grinding noise. If the synchro ring gap measures below 0.8 millimeters when pressed against the gear cone, replacement is mandatory.
- Difficulty shifting into specific gears: This typically points to worn shift forks, bent shift rails, or damaged synchro assemblies. Third gear and fourth gear are the most affected in high-mileage NV4500 and NV5600 units.
- Whining or humming noise in neutral: Input shaft bearing wear produces a whining noise that changes pitch with engine RPM. This bearing is accessible without full teardown but often signals broader internal wear.
- Jumping out of gear: Detent spring fatigue or worn shift fork pads allow the transmission to disengage under load. This is a safety-critical failure that requires immediate attention.
- Metal particles in lubricant: Drain the transmission fluid and inspect for metallic debris. Fine glitter-like particles indicate normal bearing wear; chunky metal fragments signal gear tooth damage requiring a full rebuild.
Ram Manual Transmission Rebuild: Step-by-Step Guide
The following procedure applies to all three common Dodge and Ram manual transmissions. Specific torque values and part numbers vary by model; always reference the factory service manual for your exact transmission and model year.
Step 1: Removal and Teardown
Disconnect the battery negative terminal and drain the transmission lubricant into a clean container for later inspection. Remove the driveshaft, shift linkage, clutch hydraulic line, reverse light connector, and transfer case if equipped with four-wheel drive. Support the transmission with a transmission jack rated for at least 250 pounds. Unbolt the transmission from the engine bellhousing, typically six to eight bolts depending on the model, and carefully separate the unit from the engine block.
Once the transmission is on a clean workbench, begin external disassembly. Remove the shift tower, top cover, power take-off cover if equipped, and tail housing. Photograph each component orientation before removal. The NV4500 and NV5600 use a main shaft retention nut on the rear output; this nut must be removed before the main shaft can be extracted from the case. The G56 uses a different retention method involving a snap ring on the output shaft.
Step 2: Inspection and Measurement
Inspection determines which parts can be reused and which must be replaced. This is the most critical phase of any ram manual transmission rebuild or dodge manual transmission rebuild. Use a micrometer and dial indicator to measure the following:
- Main shaft journal diameters: Measure at three points along each bearing journal. Wear exceeding 0.002 inches beyond factory specification requires shaft replacement.
- Bearing clearances: Assembled bearing radial clearance should fall between 0.003 and 0.005 inches. Excessive clearance causes gear misalignment and accelerated synchro wear.
- Synchro ring gap: Press each synchro ring onto its mating gear cone and measure the gap with a feeler gauge. A new synchro ring typically shows a gap of 1.2 to 1.6 millimeters. Any ring measuring below 0.8 millimeters must be replaced.
- Gear tooth condition: Inspect all gear teeth for pitting, spalling, chipping, or abnormal wear patterns. Blue discoloration indicates overheating. Replace any gear showing surface damage.
- Shift fork pad thickness: Measure fork pad contact surfaces. Wear exceeding 0.5 millimeters causes imprecise shifting and should trigger replacement.
For detailed factory specifications, the Allpar Ram Truck Technical Archives provides model-year-specific service data compiled from Chrysler factory service manuals.
Step 3: Parts Replacement and Assembly
Order a master rebuild kit that includes all bearings, synchro rings, seals, gaskets, snap rings, and shift fork pads. Reputable suppliers include Transmission Specialties, Midwest Transmission, and Drivetrain USA. Expect to pay between $650 and $1,400 for a quality master kit depending on the transmission model and whether performance upgrades are included. You can compare rebuild kit pricing and availability at Summit Racing Transmission Rebuild Kits for current stock levels.
Begin reassembly by pressing new bearings onto the main shaft and countershaft using a hydraulic press or bearing press tool. Never hammer bearings into place; impact forces damage bearing races and cause premature failure. Install new synchro rings, ensuring each ring is matched to its correct gear. Apply a thin coat of assembly lubricant to all friction surfaces.
Reinstall the main shaft and countershaft into the case, verifying that all gear engagements are smooth by rotating the input shaft by hand. Install shift forks and rails, adjusting detent spring tension to factory specification. Torque all case bolts and retention nuts to the values specified in your service manual. The NV4500 fifth gear nut, for example, must be torqued to 250 lb-ft and secured with a locking tab washer.
Step 4: Reinstallation and Testing
Reinstallation is the reverse of removal. Before mating the transmission to the engine, inspect the clutch disc, pressure plate, flywheel, and pilot bearing. A transmission rebuild is the ideal time to replace the clutch assembly if it shows any wear. Align the clutch disc using an alignment tool before bolting the transmission to the bellhousing.
Fill the transmission with the correct lubricant type and quantity. The NV4500 and NV5600 require GL-4 rated 75W-85 synthetic gear oil; using GL-5 oil damages the yellow-metal synchro rings due to sulfur-based extreme pressure additives. The G56 requires Mopar ATF+4 automatic transmission fluid. After filling, cycle through all gears with the engine off to distribute lubricant, then start the engine and test each gear under load in a safe area. Listen for abnormal noises and verify smooth engagement across all forward gears and reverse.
Cost Breakdown: DIY Rebuild vs Professional Service
Understanding the financial comparison between a DIY ram manual transmission rebuild and professional service helps you make an informed decision. The following table compares costs for a standard NV4500 rebuild as of early 2026.
| Category | DIY Rebuild | Professional Rebuild | Remanufactured Replacement |
|---|---|---|---|
| Master rebuild kit | $650 to $1,400 | Included in labor quote | Not applicable |
| Specialty tools (one-time purchase) | $150 to $350 | Not applicable | Not applicable |
| Labor | $0 (your time) | $1,800 to $2,800 | Not applicable |
| Lubricants and consumables | $60 to $120 | Included | $60 to $120 |
| Unit cost (replacement) | Not applicable | Not applicable | $3,200 to $4,800 |
| Total estimated cost | $860 to $1,870 | $2,450 to $4,200 | $3,260 to $4,920 |
| Time investment | 12 to 18 hours | 3 to 5 days turnaround | 1 to 3 days turnaround |
| Warranty | Parts only (varies) | 12 to 24 months | 12 to 36 months |
Performance Upgrades During Your Rebuild
A rebuild is the most cost-effective time to upgrade your Dodge or Ram manual transmission for increased torque capacity and shift quality. The following upgrades are commonly installed during a dodge manual transmission rebuild.
Upgraded Input Shaft
The factory NV4500 input shaft is a known weak point when engine output exceeds 400 lb-ft of torque. Aftermarket input shafts machined from 300M alloy steel increase torque capacity to approximately 650 lb-ft. These shafts cost between $280 and $450 and are a direct replacement during reassembly.
Heavy-Duty Synchronizers
Carbon-lined synchro rings provide faster synchronization and longer service life compared to stock brass or sintered iron rings. Carbon synchro kits for the NV4500 and NV5600 typically add $150 to $300 to the rebuild parts cost but extend synchro life by an estimated 60,000 to 80,000 miles under normal use.

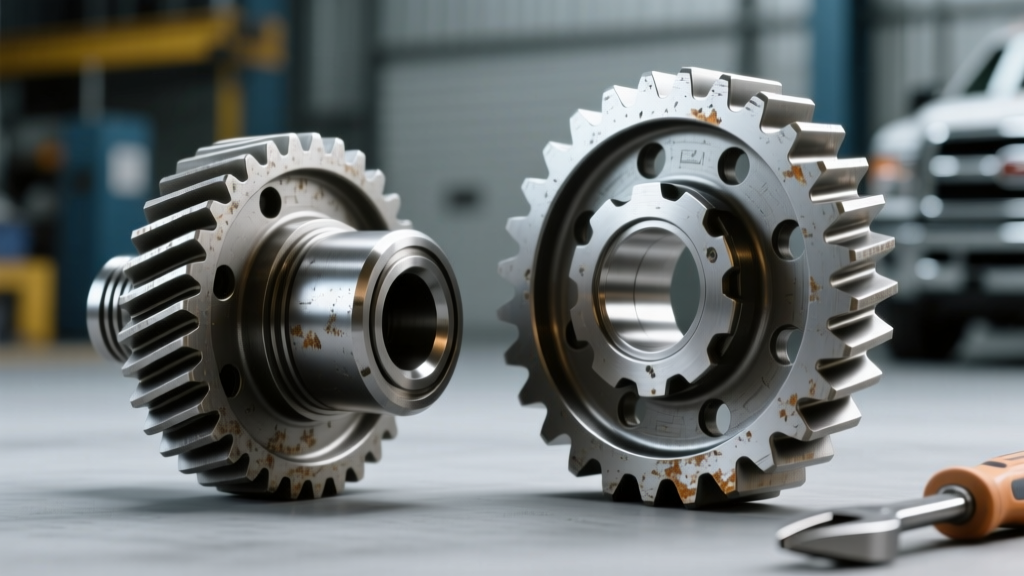

Upgraded Fifth Gear Set
The NV4500 fifth gear failure is so common that aftermarket companies offer reinforced fifth gear sets with larger tooth profiles and improved main shaft retention hardware. A complete upgraded fifth gear assembly costs between $350 and $550 and effectively eliminates the overdrive failure mode that plagues stock units.
Combining an upgraded input shaft with a reinforced fifth gear set brings the NV4500 reliable torque capacity close to that of the more expensive NV5600, according to technical testing documented by Allpar NV4500 transmission resources.
Dodge Manual Transmission Rebuild FAQ
How much does it cost to rebuild a Ram manual transmission?
A DIY Ram manual transmission rebuild costs between $860 and $1,870 including parts, tools, and lubricants. A professional rebuild at a transmission shop typically ranges from $2,450 to $4,200 including labor. Costs vary based on the specific transmission model (NV4500, NV5600, or G56), the extent of internal damage, and whether performance upgrades are selected.
How long does a Dodge manual transmission rebuild take?
An experienced DIY mechanic should budget 12 to 18 hours spread across two to three days for a complete dodge manual transmission rebuild including removal, teardown, inspection, reassembly, and reinstallation. Professional shops typically complete the same work in one to two business days, with total turnaround including parts ordering averaging three to five days.
Is it worth rebuilding a manual transmission instead of replacing it?
Rebuilding is generally worth the effort when the transmission case and main shaft are in good condition. A rebuild saves $1,500 to $3,000 compared to purchasing a new or remanufactured unit. However, if the case is cracked, the main shaft is scored beyond specification, or multiple gears show severe pitting, replacement with a remanufactured unit may be more economical and provides a longer warranty.
What is the best manual transmission for a Ram Cummins truck?
The Aisin G56 is widely regarded as the most reliable manual transmission offered in Ram Cummins trucks, with a factory torque rating of approximately 600 lb-ft. For trucks modified beyond 600 lb-ft, the NV5600 with aftermarket upgrades or a swap to a Tremec T56 Magnum rated at 700 lb-ft are popular choices. The NV4500 remains a viable option for stock or mildly modified Cummins engines when equipped with an upgraded input shaft and fifth gear.
What tools do I need for a Ram manual transmission rebuild?
Essential tools include a transmission jack with 250-pound minimum capacity, snap ring pliers for both internal and external rings, a bearing press or hydraulic press, torque wrench in both inch-pound and foot-pound ranges, micrometer, dial indicator, feeler gauge set, and a complete socket set including Torx and 12-point sockets. A service manual with factory specifications for your exact transmission model is mandatory.
Can I rebuild a Dodge manual transmission without removing it from the truck?
No. A proper manual transmission rebuild requires complete disassembly, which is impossible with the unit installed in the vehicle. The transmission must be removed from the truck and placed on a workbench or in a vise to access internal components, press bearings, and verify clearances with precision measuring instruments.
Conclusion and Next Steps
Rebuilding a Ram or Dodge manual transmission is a challenging but achievable project for mechanically competent truck owners. By following the step-by-step process outlined above covering removal, teardown, precise measurement, selective parts replacement, and careful reassembly, you can restore your NV4500, NV5600, or G56 to factory specification or better while saving $1,500 to $3,000 compared to professional service or replacement.
Your immediate next step is to identify your exact transmission model using the casting numbers on the case and order the appropriate master rebuild kit and service manual. Inspect your drained lubricant for metal debris to gauge internal wear severity before committing to parts orders. If the lubricant contains large metal fragments, plan for potential hard-part replacement beyond the standard rebuild kit.
